Lab 6: Backtracking

The point of this lab is to search and backtrack. The domain will be a maze, and it will be a relatively simple maze. The system should try a path. If it fails it should backtrack and try a different path.

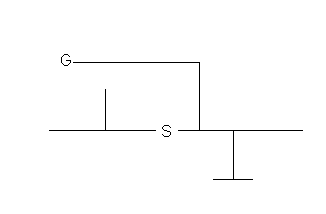

• Here is a maze:
• S is the start, and G is the goal. Encode the maze as a series of facts. I did it with 13 facts.
• Simplifications:
  • At any point there will be at most three choices, with one of those choices being where you came from; this means that you only need to remember one possible place to back up to at each point.
  • There will be no cycles. This means that you can't get back to a place you've already been without backing up.
• Make a system that solves every maze with the two simplifications. There are at least three ways to do this:
  • Solve this particular problem, then try to fix it up.
  • Solve it in sections. Here's the way I broke the problem down.
    • Make a rule that moves the user. Be careful, if you run, the rule might loop (use the Execution menu with the Halt item).
    • Modify the rule so that it remembers where it's been and doesn't go back.
    • Implement backtracking. I did this in three steps.
    • Make a new rule that works when there are two options, travel down one and stack the other. I had to use a neq test on this. I also used (declare (salience 10)) so that the two option rule is preferred over the one option rule.
    • Modify the rule so that it stacks the alternative. I used a stackHt and stack variable and filled in the untaken path. I only kept one instance of stackHt but had one variable for each stack element.
    • Add a rule to backtrack when there are no other options. That is, if there is a deadend, pop the stack and move to that location.
    • Add a rule to stop when the user is at the goal.
  • Try to solve it all in one step. The eventual solution I get has seven rules.
• Design your own maze and show the system running on it.
• Are you confident it will run on all reasonable mazes?
• What will happen if there are cycles?
• What would you do if there were more than three choices at any one point?
